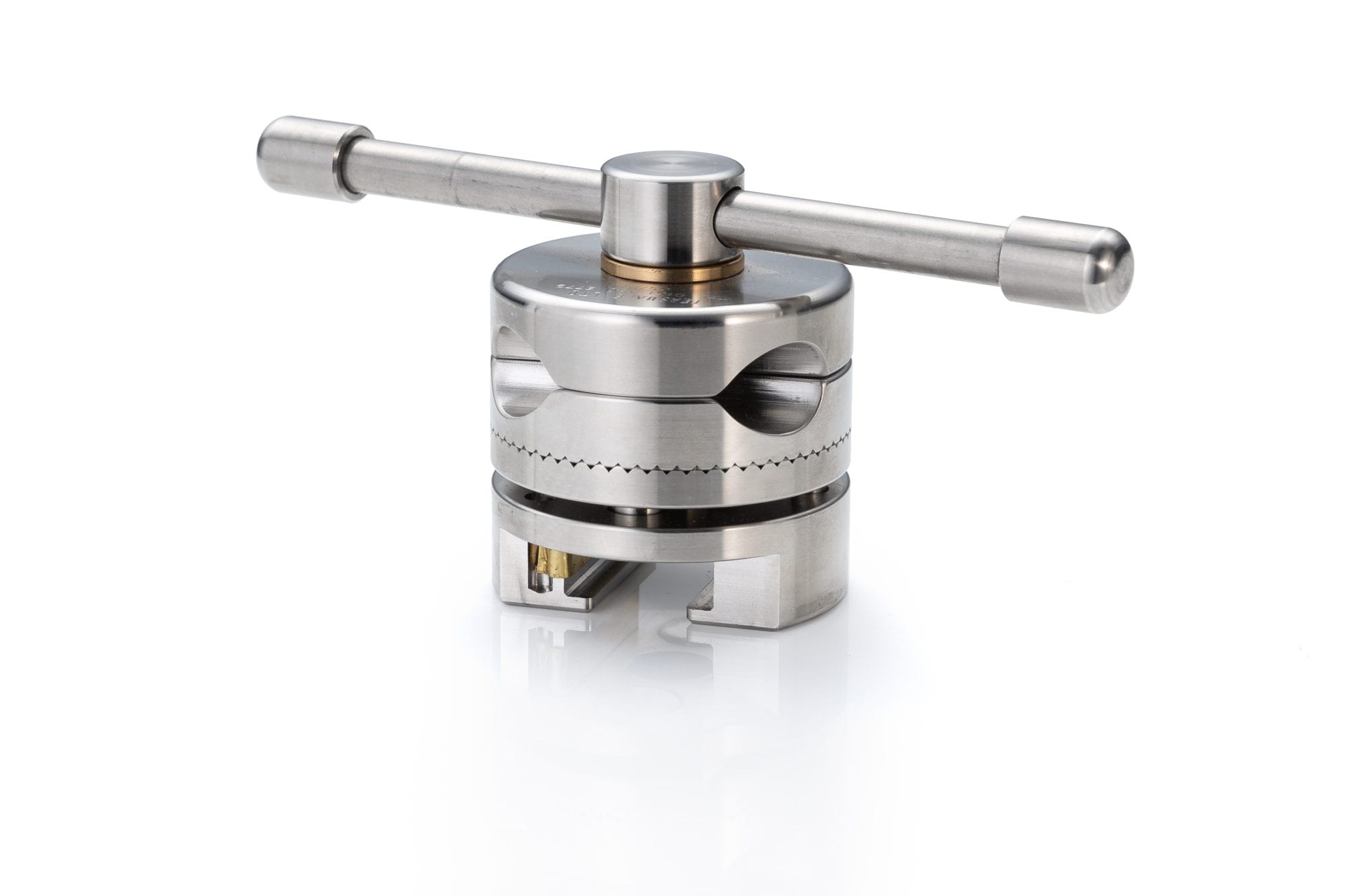

European Rotary Accessory Clamp (Toothed)
TT/458
Specifications
Technical Data
Instructions for use
Specifications
The Rotary Clamps fits all EU tables and has locking teeth for extra security for more heavy duty supports. Ideal for procedures whereby more weight is placed on the support, such as lithotomy or lateral positioning.
Suitable for all round bar accessories.
Technical Data
Metalwork: High grade 306 stainless steel.
Fire Retardancy: Crib 5, Ignition source 0 to BS7177
Cleaning: 1,000 ppm diluted or 0.1% hypochlorite solution (to be used in conjunction with local infection control guidelines).
Instructions for use
Slide the Accessory Clamp on to the EU model table.
Place the round bar positioning aid into the clamp and tighten the handle (Tommy Bar) until the support is secure.
NB: Do not over-tighten.
