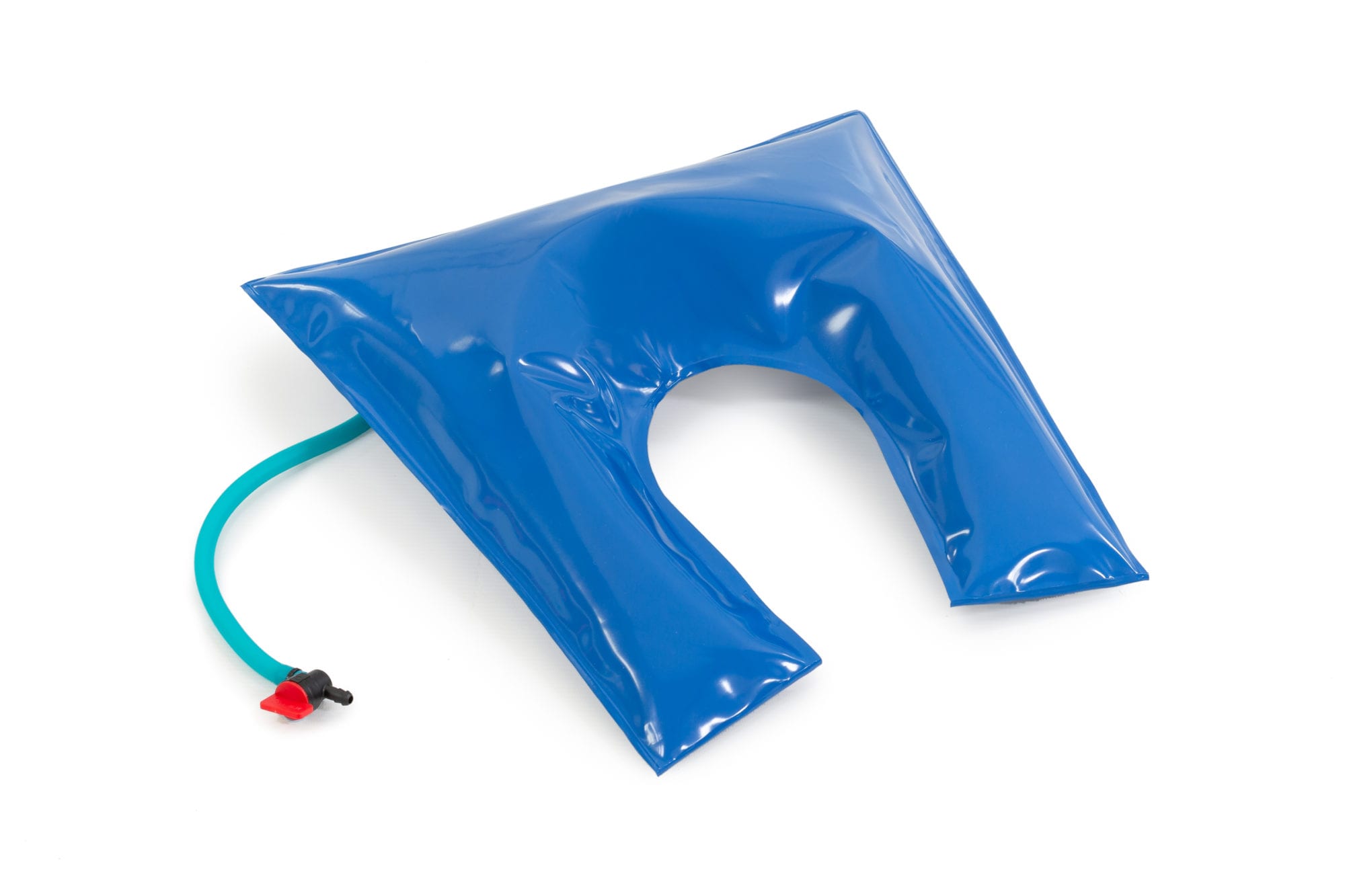

Evacuated Bead Supports – Horsehoe Head Rest
Evacuated Bead Support Horseshoe, offers an easy to use device for stabilising the patient’s head while in the supine position
Easy to use and comes with the option of refurbishment whereby beads can be ‘topped up’, the outer cover replaced or tubing and valves replaced where necessary.
TB/006 Evac Horseshoe Head Rest
14″(356mm)L x 14″(356mm)W
Inner beads : Polystyrene
Inner cover : Cotton
Outer cover : Polyurethane which is wipe clean and waterproof
Tubing & Valve : Polyurethane
Fire Retardancy: Crib 5, Ignition source 0 to BS7177
Cleaning: 1,000 ppm diluted or 0.1% hypochlorite solution (to be used in conjunction with local infection control guidelines).
Place the Evacuated Bead Support on the operating table behind the patient’s head.
Arrange the bead around the patient to that they will be supported sufficiently.
Ensure that the valve is ‘open’ and attached a suction machine to the valve and evacuated the air from the support, until the support feels solid.
Ensure the patient is stable.
After Use: Open the valve to let the air back into the support. Shaking the support will help the air back in, but is not necessary.
