Gutter Arm Rest
TT/132
Specifications
Technical Data
Instructions for use
Specifications

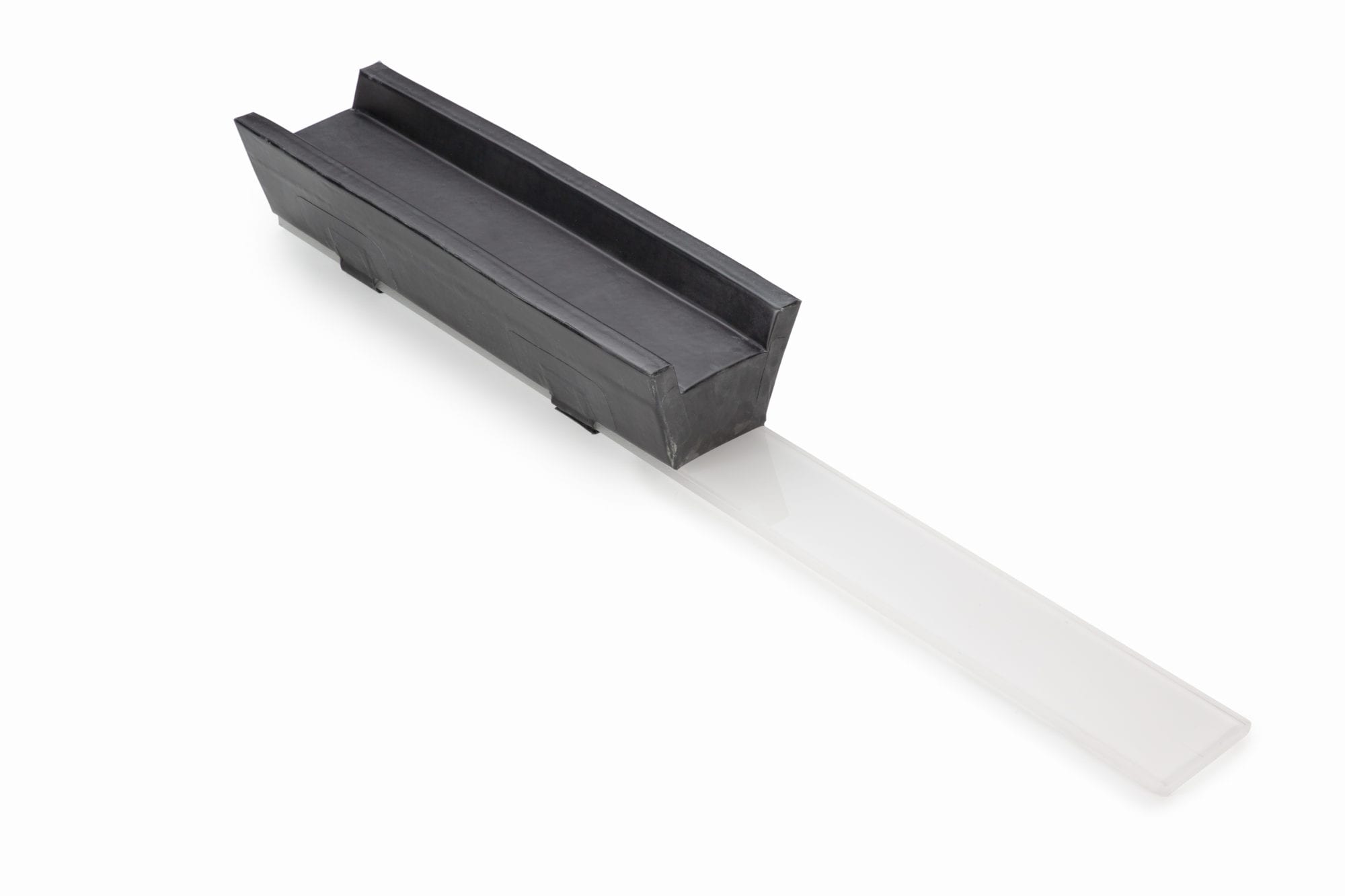

The Gutter Arm Rest is a versatile and durable Arm Rest that can easily be used on all operating tables.
Complete Arm Rest Size: 39” x 4” x 0.5” (991mm x 102mm x 13mm)
Flat Arm Rest Pad 22” x 4” x 2”/3” (559mm x 102mm x 51mm/76mm).
Technical Data
Arm board base: 10mm perspex.
Pad: 50kg high resilient foam covered in a polyurethane cover which is waterproof, wipe clean and multi-stretch.
Fire Retardancy: Crib 5, Ignition source 0 to BS7177
Cleaning: 1,000 ppm diluted or 0.1% hypochlorite solution (to be used in conjunction with local infection control guidelines).
Infection Control: All seams are sealed (without stitching) for infection control purposes.
Instructions for use
- Position the perspex board between the operating table and the operating table mattress at the appropriate place for the patient’s arm to be positioned.Ensure that the support is securely in place.Position the patients arm on the padded part of the support.
