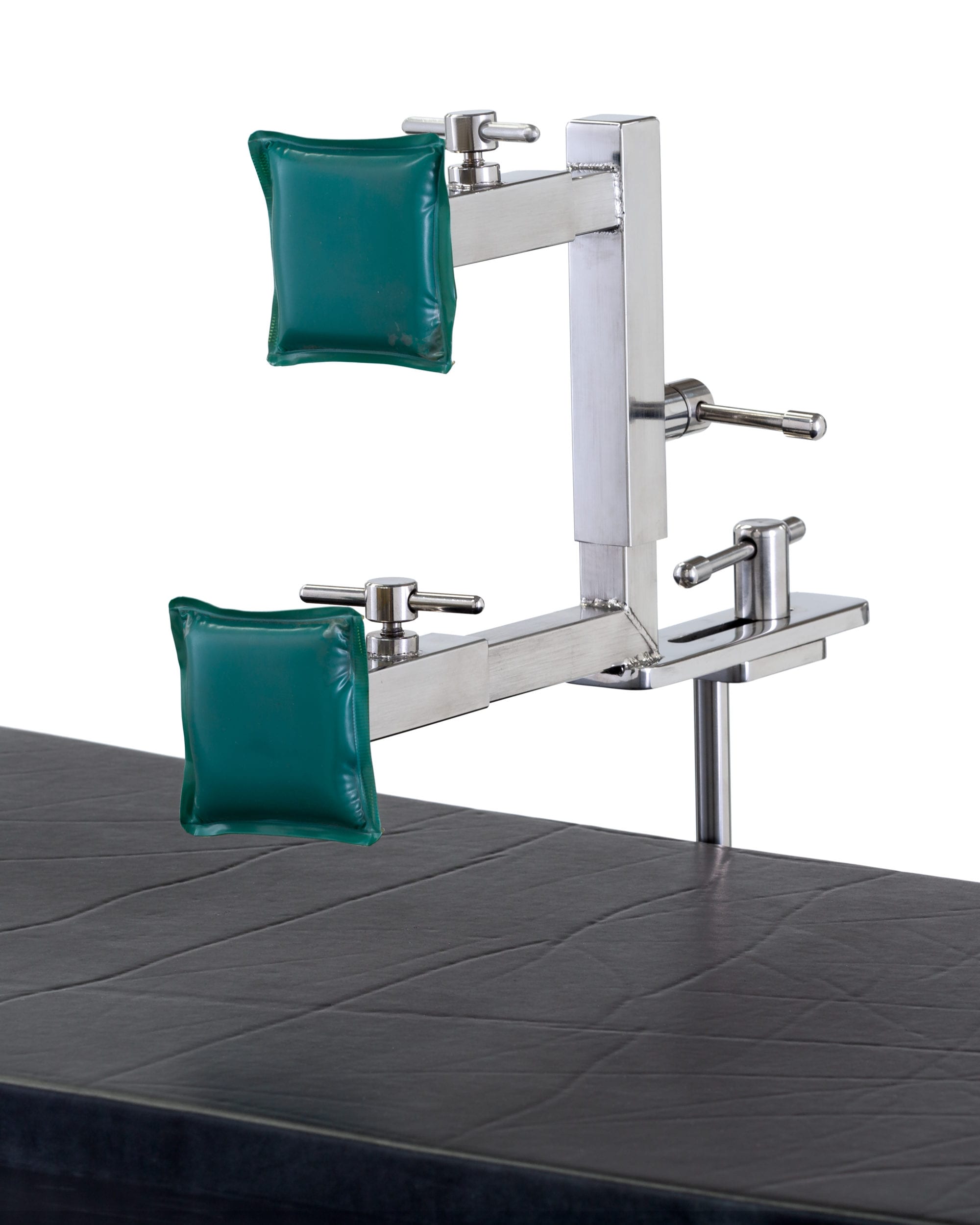

Hip Prop

A compact Hip Support that is adjustable to all patient sizes. The support has 2 prongs which can be manoeuvred both horizontally and vertically to meet the requirements of the procedure when the patient is in the lateral position.

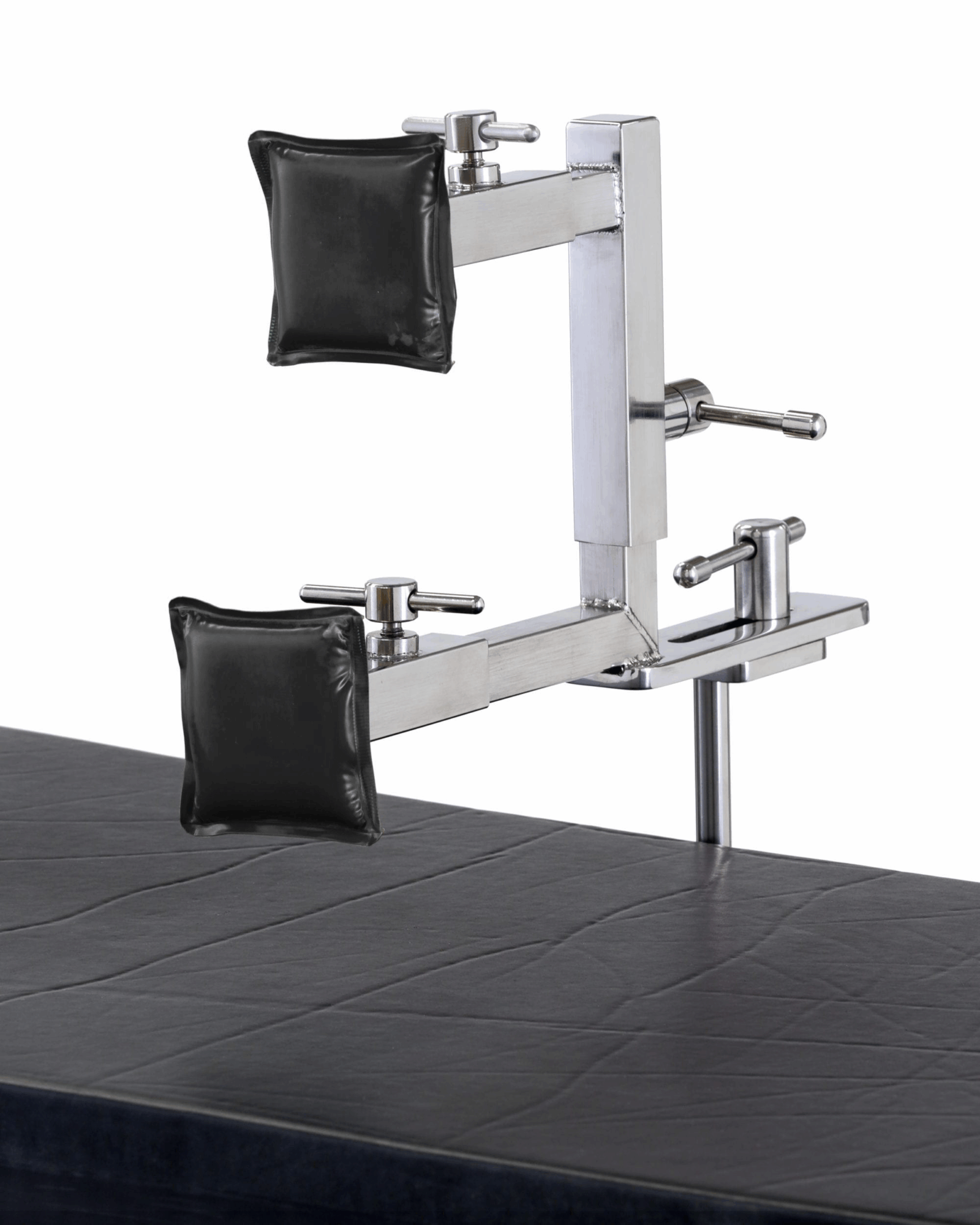

Comes with black polyurethane covered pads as standard with an option to purchase gels pads for added pressure relief.

Metalwork: Medical grade 304 stainless steel

Pads: High resilient foam covered with neoprene rubber which is late free.

Gel Pads: Polyurethane gel with a polyurethane outer cover.

Fire Retardancy: Crib 5, Ignition source 0 to BS7177

Cleaning: 1,000 ppm diluted or 0.1% hypochlorite solution (to be used in conjunction with local infection control guidelines).

Infection Control: All seams are sealed (without stitching) for infection control purposes.

Slide a suitable round bar accessory clamp onto the operating table accessory rail.

Place the support pole into the clamp and tighten the clamp so that the support is secure.

Place the patient into the lateral position and locate the Iliac Crest for the placement of the prong. The prongs can be adjusted by the handles.

Ensure all handles are tightened so that the support is secure.
