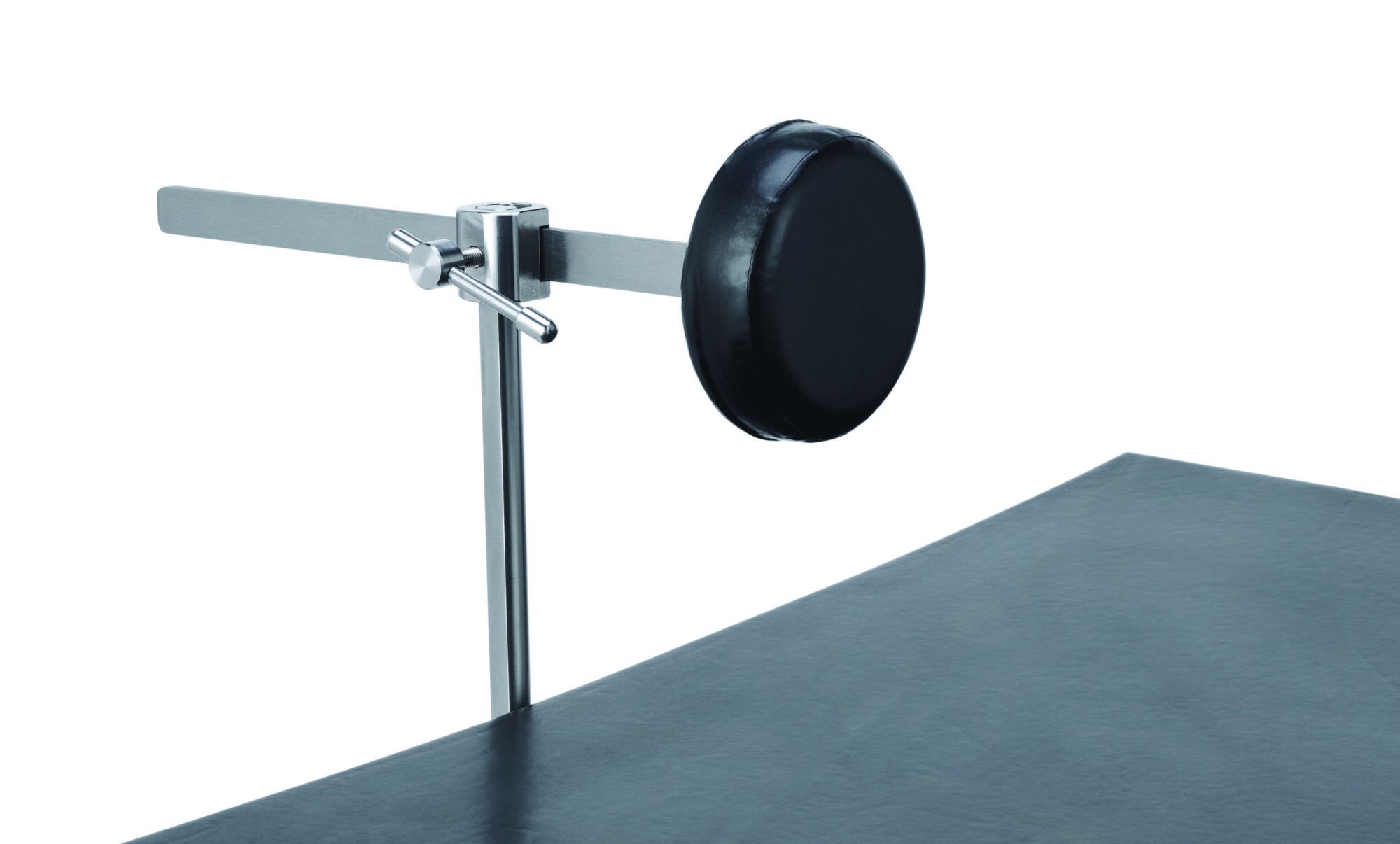

Exeter Lumbar Support with Accessory Clamp
An alternative Lumbar Support whereby the top prong is fixed in place so that the upright bar only is to be adjusted. Comes with a purpose made accessory clamp to prevent any rotation of the oval shaped upright bar.
Replacements Pads can be fitted with pressure relieving gel as an option and all pads are easily replaced. Prong and accessory clamps can be purchased separately.
Fits all operating table models
TT/432 – Replacement Support Pad
TT/433 – Replacement Top Clamp
TT/461 – Accessory Clamp to fit UK table
TT/462 – Accessory Clamp to fit EU table
Metalwork: High grade 306 stainless steel.
Pad: Inner high resilience foam with bonded cover made from waterproof, multi-stretch polyurethane material.
Fire Retardancy: Crib 5, Ignition source 0 to BS7177
Cleaning: 1,000 ppm diluted or 0.1% hypochlorite solution (to be used in conjunction with local infection control guidelines).
Infection Control: All seams are sealed (without stitching) for infection control purposes.
Attach the accessory clamp to the operating table rail ensuring that the clamp provided with the support is used and it is the correct type for the table model.
Slot the upright bar of the Lumbar Support into the clamp, position in the appropriate place on the rail and tighten.
Lay the patient in a lateral position, locate the area to place the pad, ensure and that the patient is secure, then tighten the prong clamps with the handles provided.
