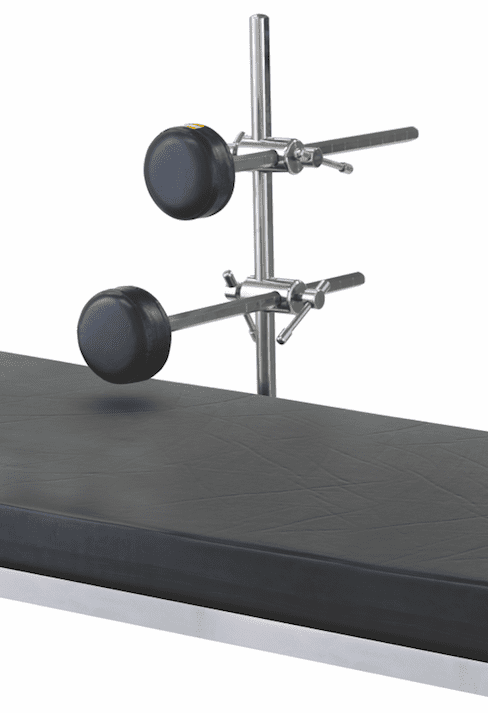

Iliac Support with Rotary Accessory Clamp
The Iliac Support offers accuracy and stability required for total hip replacement. Due to the exactness necessary for this procedure, the support can be adjusted to fit to the crista iliac for all patients.
The Iliac Support comes with its own Rotary Clamp made specifically for this product ensuring further stability preventing any twisting on the operating table.
TT/412 Complete with Pads and Accessory Clamp (please state the table model).
TT/413 Replacement Pads (pair).
TT/412C Replacement Cylinder Clamps.
TT/408IC Replacement UK Rotary Clamp
TT/458IC Replacement EU Rotary Clamp
Metalwork: High grade 306 stainless steel.
Pad: Inner high resilience foam with bonded cover made from waterproof, multi-stretch polyurethane material.
Fire Retardancy: Crib 5, Ignition source 0 to BS7177
Cleaning: 1,000 ppm diluted or 0.1% hypochlorite solution (to be used in conjunction with local infection control guidelines).
Infection Control: All seams are sealed (without stitching) for infection control purposes.
Ensure to select the Rotary Iliac Clamp that was supplied with the Iliac Support.
Slide the accessory clamp onto the accessory rail at the desired position.
Slot the round bar on the Iliac Support into the clamp, sliding the key into the gap in the clamp and tighten.
Place the patient in a lateral position and adjust the prongs to fit into the patients Crista Iliaca and tighten the clamps.
NB: This product is to be used in conjunction with the Pelvic Pusher Support.
