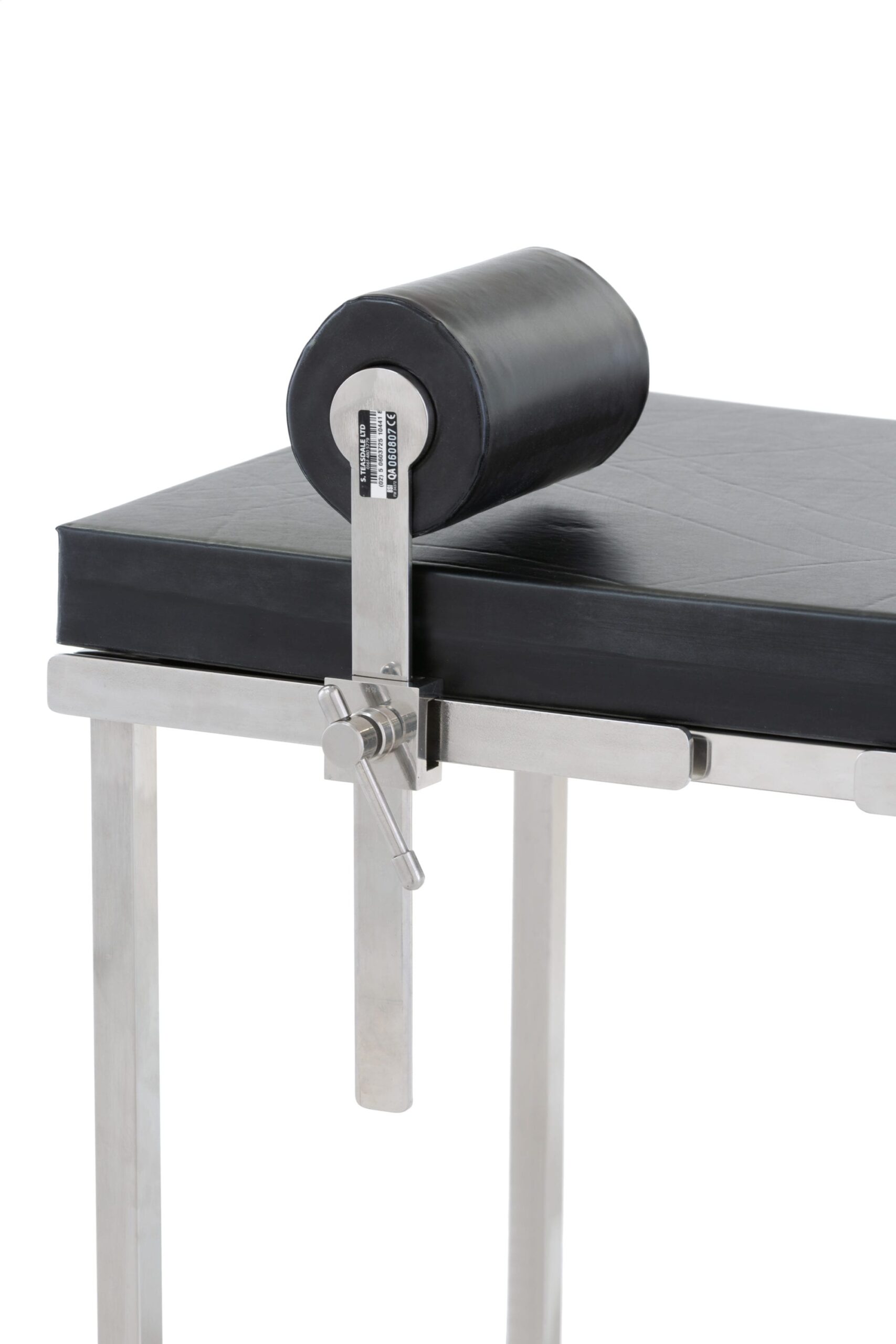

Foot Rest

A simple and convenient foot rest for all operating tables.

TT/416 Complete with Pad
TT/417 Replacement Support Pad
8″ (203mm) x 4″ (102mm) DIA

Metalwork: High grade 306 stainless steel.

Pad: Inner high resilience foam with bonded cover made from waterproof, multi-stretch polyurethane material.

Fire Retardancy: Crib 5, Ignition source 0 to BS7177

Cleaning: 1,000 ppm diluted or 0.1% hypochlorite solution (to be used in conjunction with local infection control guidelines).

Infection Control: All seams are sealed (without stitching) for infection control purposes.

Ensure that the correct flat bar accessory clamp is selected for the operating table and slide the clamp in place.

Slot the flat bar into the clamp and tighten.

Adjust the height of the support to the desired position.
