Pelvic Support
TT/400
Specifications
Technical Data
Instructions for use
Specifications

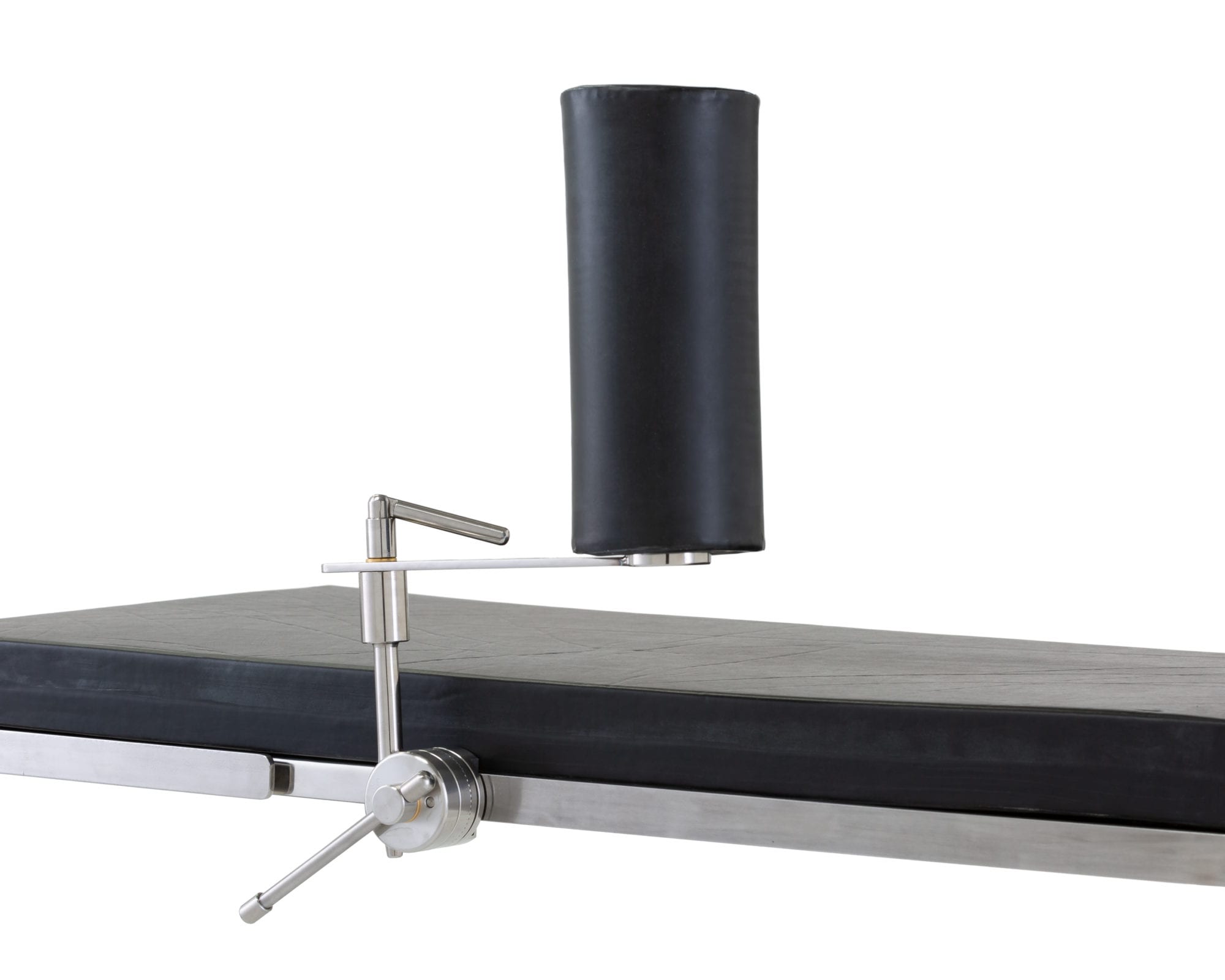

A Pelvic Support or a Total Knee Stabiliser with replacement pad and fits all operating tables.
Can be made to bespoke sizes.
TT/400 Complete with Pad
TT/127 Replacement Support Pad
11″(280mm) H x 4″(100mm) DIA
Technical Data
-
- Metalwork: High grade 306 stainless steel.
- Pad: Inner high resilience foam with bonded cover made from waterproof, multi-stretch polyurethane material.
- Fire Retardancy: Crib 5, Ignition source 0 to BS7177
- Cleaning: 1,000 ppm diluted or 0.1% hypochlorite solution (to be used in conjunction with local infection control guidelines).Infection Control: All seams are sealed (without stitching) for infection control purposes.
Instructions for use
-
- Choose the correct round bar accessory clamp for the operating table that the Pelvic Support is being attached.
- Slide the accessory clamp onto the accessory rail at the desired position.
- Slot the round bar on the Side Rail into the clamp and tighten.
- Angle the post as required and tighten the drop handle.
