Ankle Arthroscopy

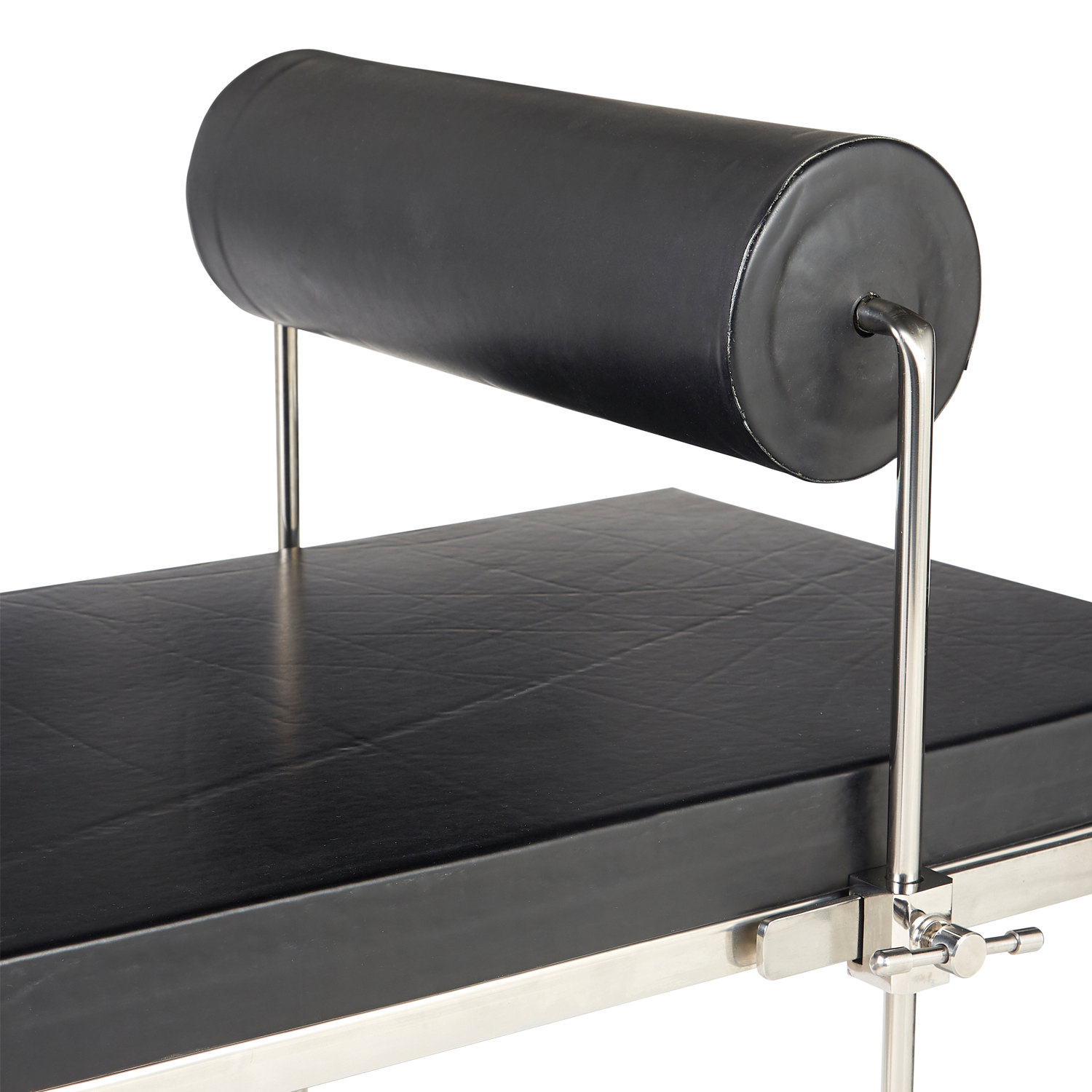

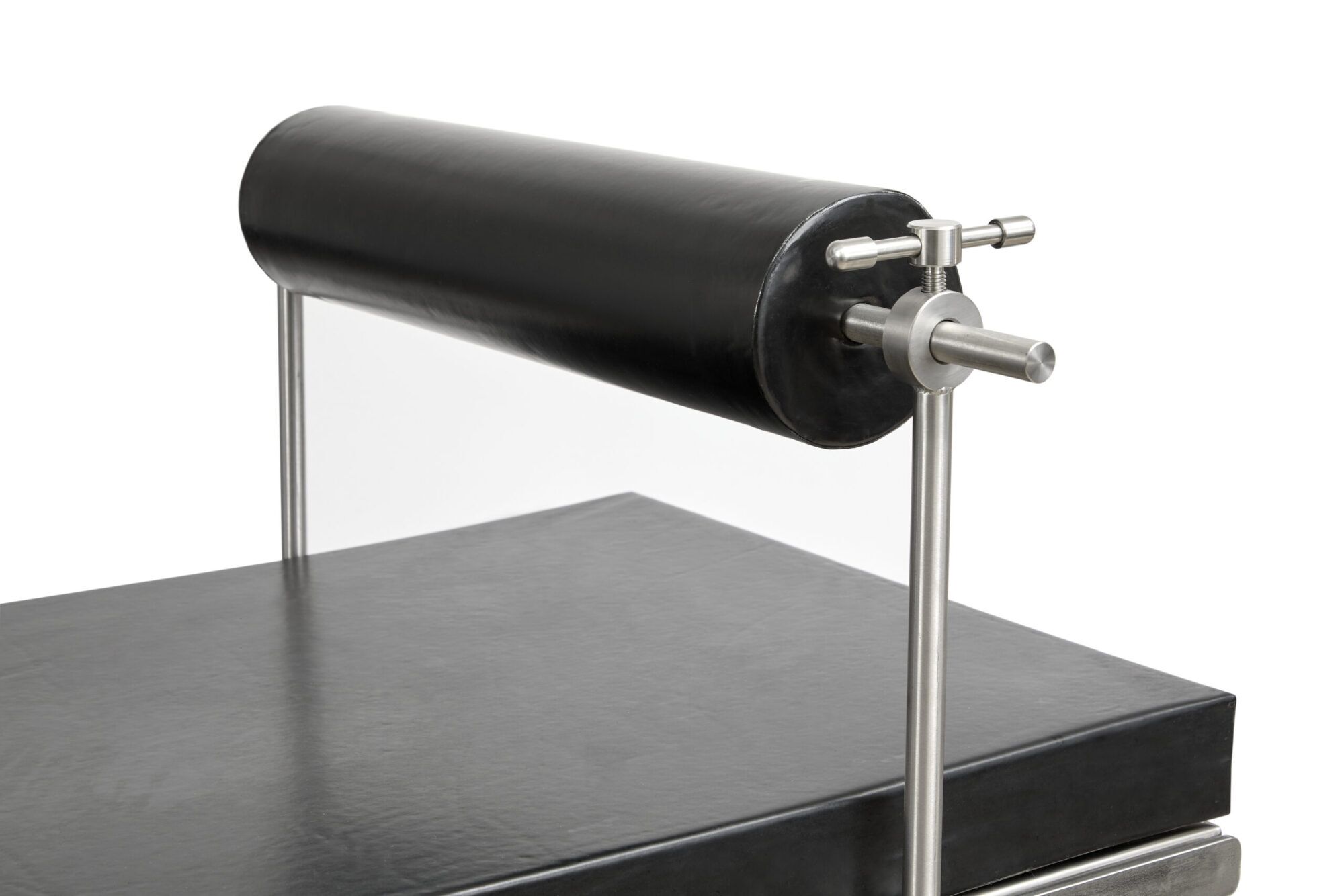

The Ankle Arthroscopy Support is a convenient product to support the ankles giving access to the tissues in this delicate procedure. The support can be adjusted in height to suit all patient requirements.
TT/103 Ankle Arthroscopy
(Please state table model when ordering)
TT/104 Replacement Support Pad
Metalwork: High grade 306 stainless steel.
Pad: Inner high resilience foam with bonded cover made from waterproof, multi-stretch polyurethane material.
Fire Retardancy: Crib 5, Ignition source 0 to BS7177
Cleaning: 1,000 ppm diluted or 0.1% hypochlorite solution (to be used in conjunction with local infection control guidelines).
Infection Control: All seams are sealed (without stitching) for infection control purposes.

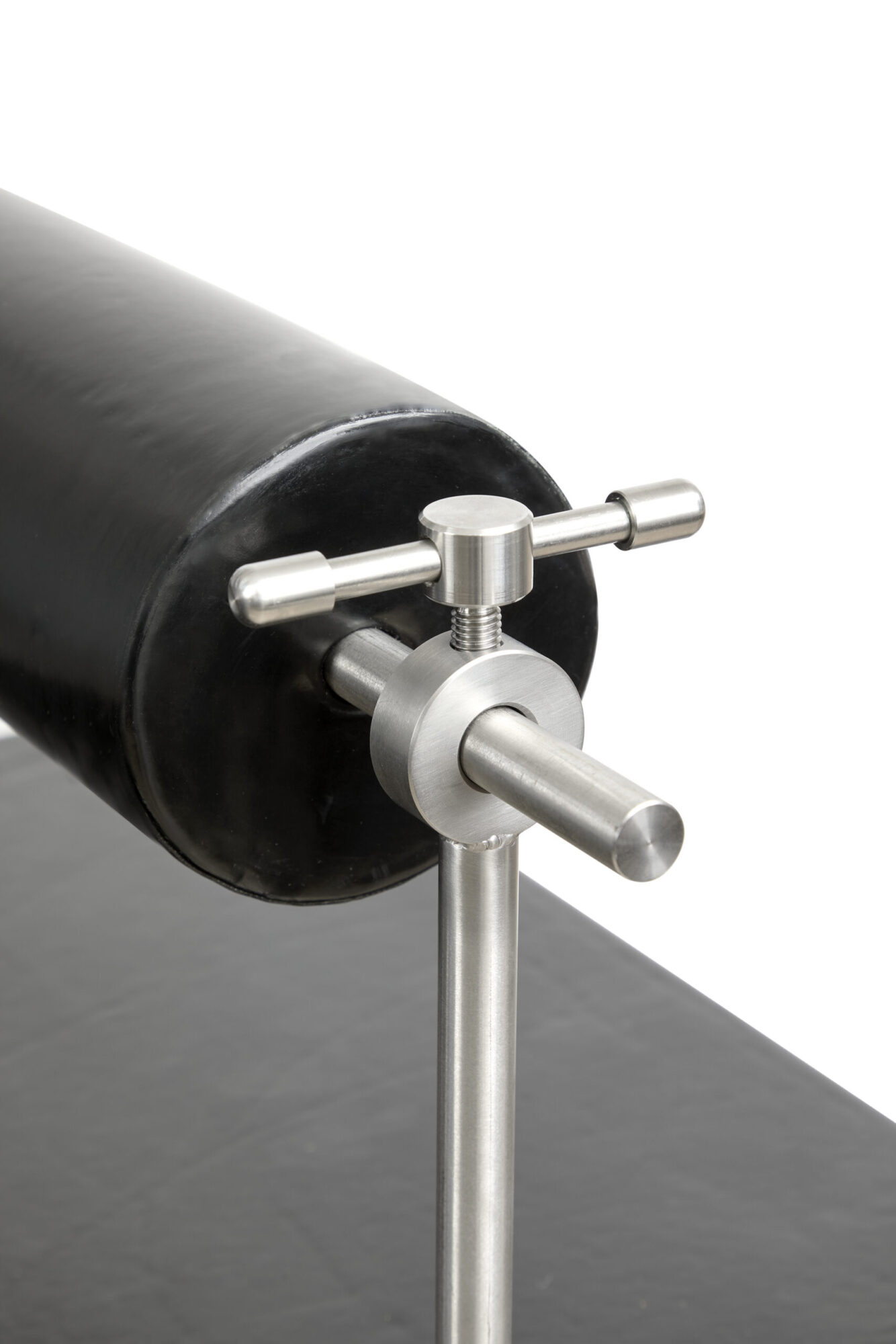

Ensure that the correct round bar accessory clamp is selected for the support and slide the clamps into place on each side of the operating table.
Slot the round bars into the clamps.
Adjust the height of the support to the desired position and righted the clamps.
