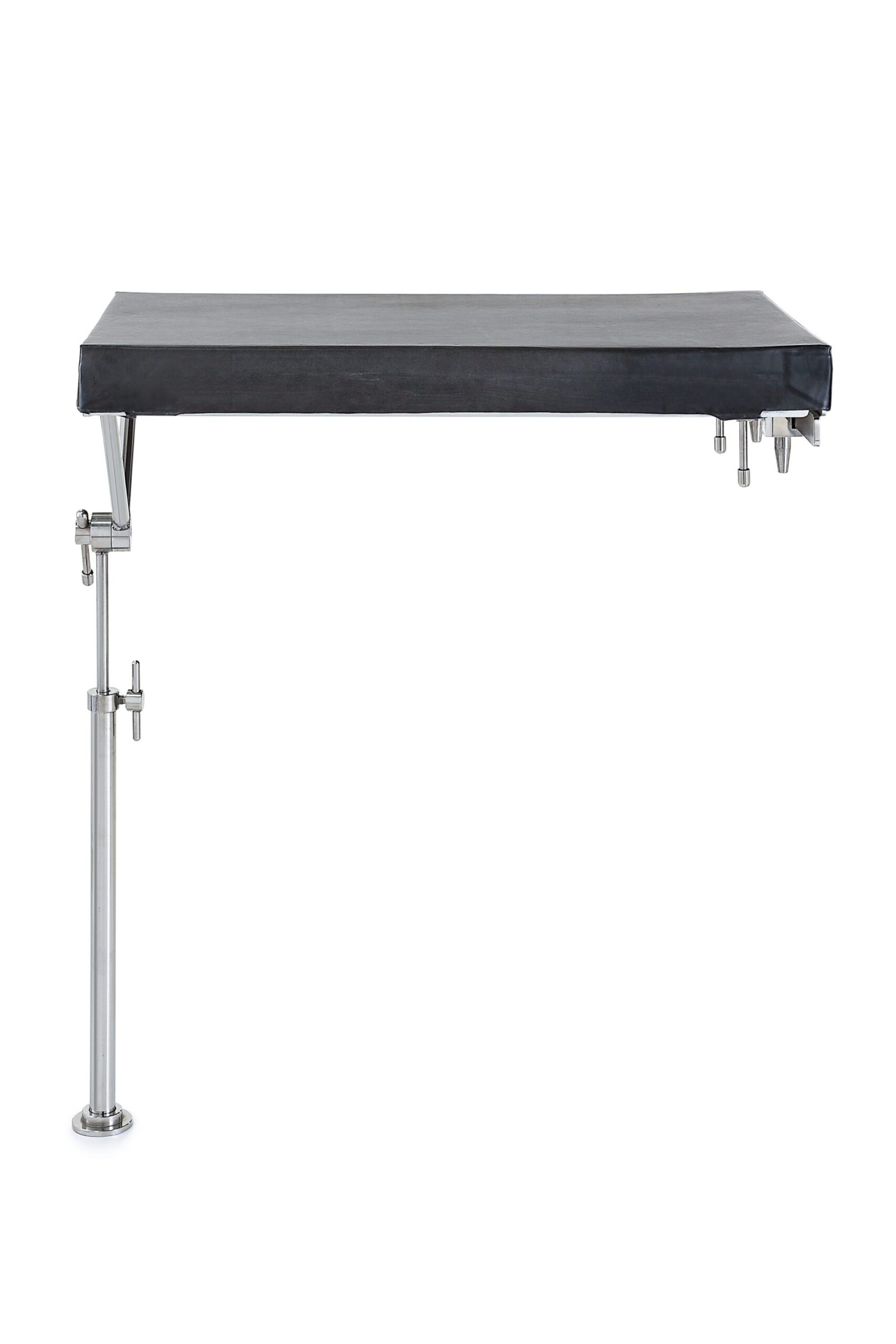

Large X-Ray Arm Table
TT/451L
Specifications
Technical Data
Instructions for use
Specifications
Manufactured from high grade 306 stainless steel and x-ray translucent top, with high resilience foam padding covered in wipe clean, durable covering.
TT/451L Complete with Pad 27″(686mm) x 19″(483mm)
TL/135 Replacement Support Pad
TT/419 Replacement Telescopic Leg
Technical Data
-
- Metalwork: High grade 306 stainless steel and x-ray lucent Tufnell top.
- Pad: Inner high resilience foam with bonded cover made from waterproof, multi-stretch polyurethane material.Fire Retardancy: Crib 5, Ignition source 0 to BS7177Cleaning: 1,000 ppm diluted or 0.1% hypochlorite solution (to be used in conjunction with local infection control guidelines).
Infection Control: All seams are sealed (without stitching) for infection control purposes.
Instructions for use
-
- Choose the correct accessory clamps for the operating table that the Arm Table is being attached.Slide the accessory clamp onto the accessory rail at the desired position.Slot the round bars on the Large X-Ray Arm Table into the clamps and tighten.
- Ensure the telescopic leg is sturdy, straight and at a right angle against the floor
- The product is now ready to be used.
