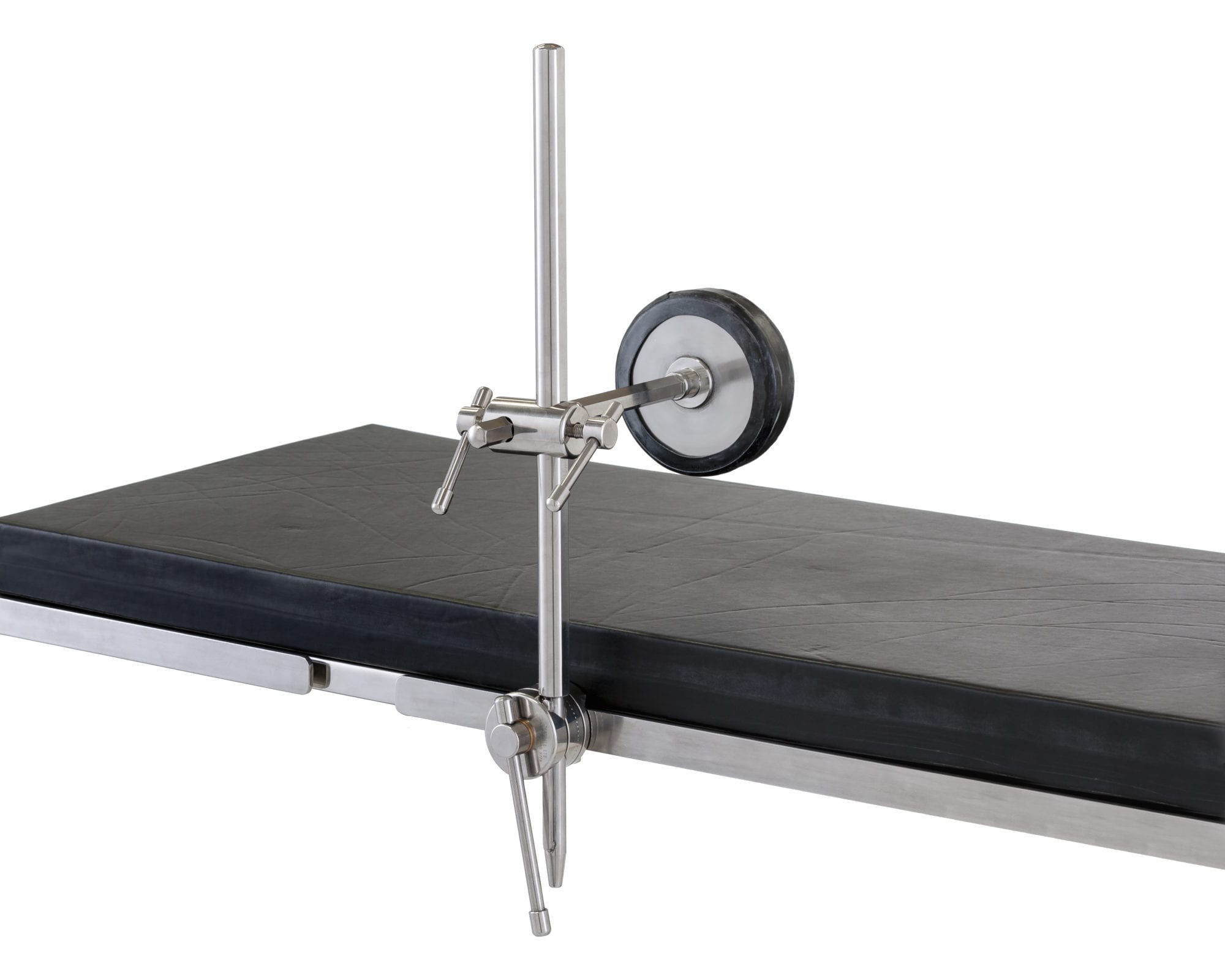

Pelvic Pusher
The Pelvic Pusher Support is design to ensure accurate and stable positioning for lateral positions and is adjustable to fit all patients.
The Pelvic Pusher Support comes with its own Rotary Clamp made specifically for this product ensuring further stability preventing any twisting on the operating table.
TT/430 Complete with Pad
TT/415 Replacement Support Pad 5.5″(140mm)DIA
Metalwork: High grade 306 stainless steel.
Pad: Inner high resilience foam with bonded cover made from waterproof, multi-stretch polyurethane material.
Fire Retardancy: Crib 5, Ignition source 0 to BS7177
Cleaning: 1,000 ppm diluted or 0.1% hypochlorite solution (to be used in conjunction with local infection control guidelines).
Infection Control: All seams are sealed (without stitching) for infection control purposes.
Ensure to select the Pelvic Pusher Clamp that was supplied with the Iliac Support.
Slide the accessory clamp onto the accessory rail at the desired position.
Slot the round bar on the Pelvic Pusher Support into the clamp, sliding the key into the gap in the clamp and tighten.
Place the patient in a lateral position and adjust the prong to fit into the patients Sacrum and tighten the clamp.
