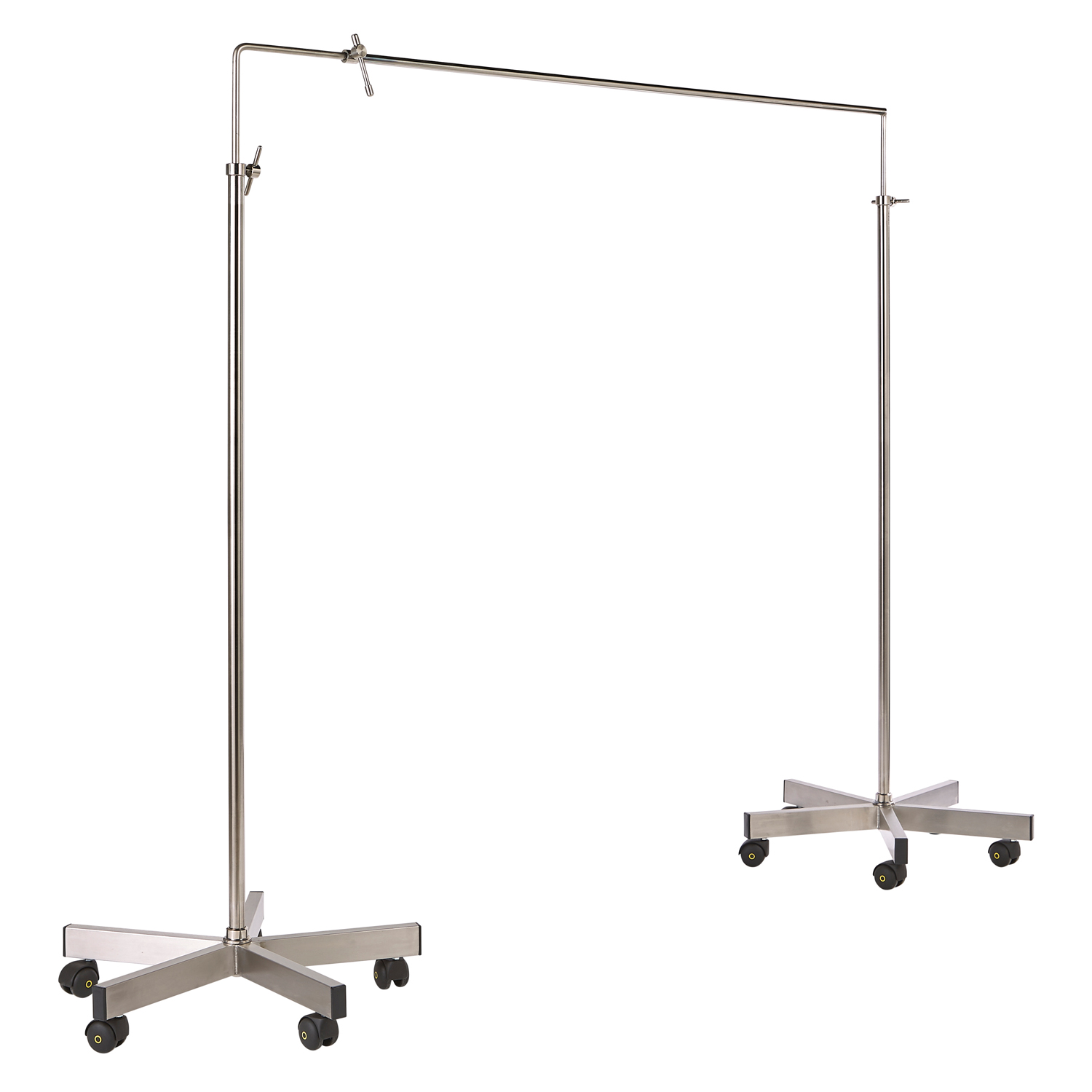

Large Anaesthetic Adjustable Screen
The Large Anaesthetic screen is used to block the anaesthetic field from the patient’s line of sight, eliminating the patient anxiety and distraction that can come with viewing the anaesthesiologist’s movements.
This is used when a more substantial screen is required than than the standard screen and whereby adjustments may need to be made.
The screen is adjustable in height and width and comes with locking castors for stability.
M/118 Anaesthetic screen is adjustable in width form.
Minimum 60″(1524mm) to maximum 108″(2743mm).
The height can also be adjusted.
Minimum 55″(1397mm) to maximum 90″(2286mm).
Metalwork: Medical grade 306 stainless steel.
Castors: 50mm swivel locking castors.
Fire Retardancy: Crib 5, Ignition source 0 to BS7177
Cleaning: 1,000 ppm diluted or 0.1% hypochlorite solution (to be used in conjunction with local infection control guidelines).
Place the Anaesthetic Screen legs in the desired position.
Raise the height to the desired position and tighten the handle, ensuring the screen is secure.
Tighten the handle on the horizontal bar once the correct width has been established.
Lock the castors in place to prevent movement.
