Buttock Support
TT/401
Specifications
Technical Data
Instructions for use
Specifications

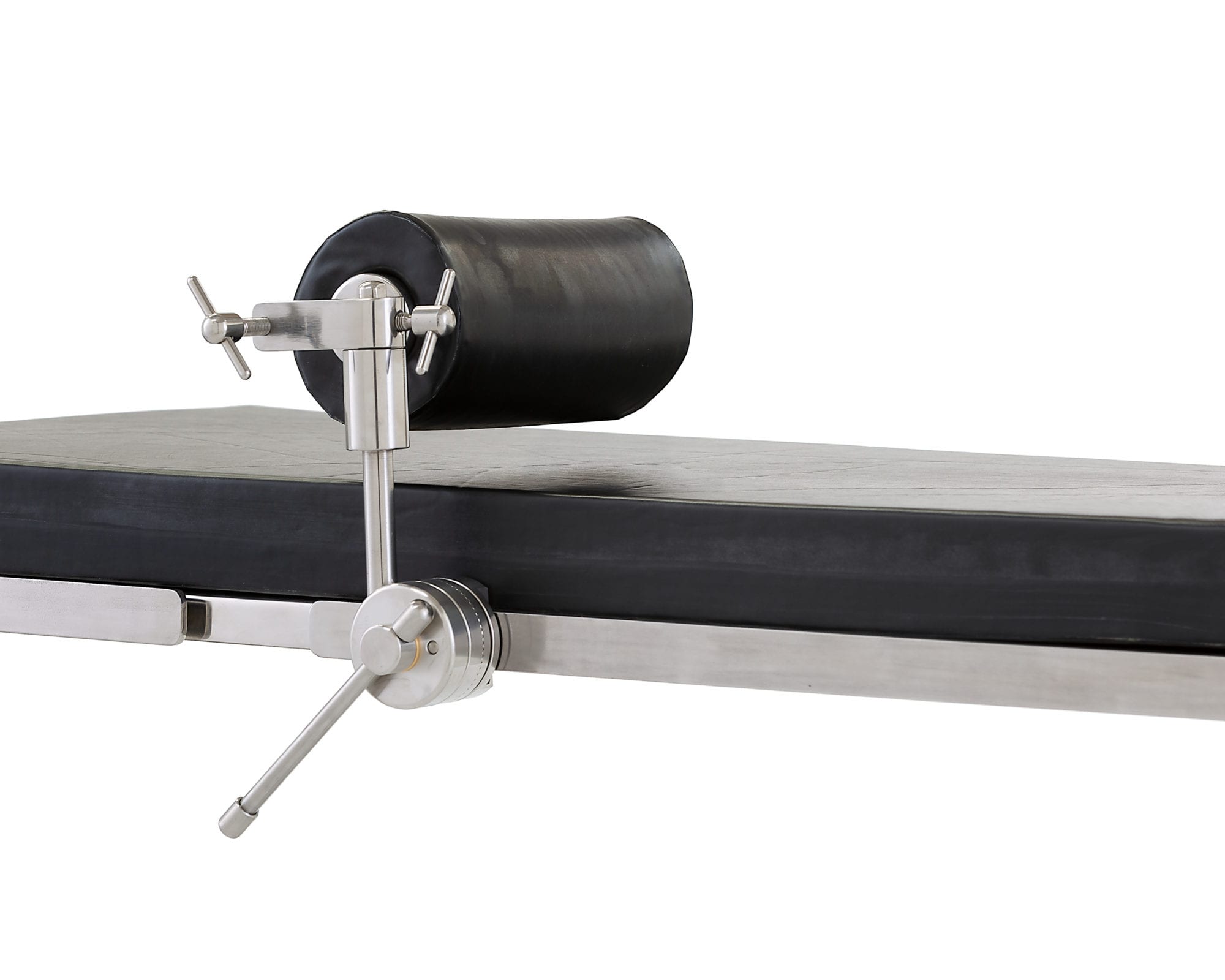

The Buttock Support assist in maintaining patient stability while the operating table is tilted to a reverse Trendelenburg position.
TT/401 Complete with Pad
TT/127 Replacement Support Pad
11″(280mm)H x 4″(100mm)DIA
Technical Data
-
-
- Metalwork: High grade 306 stainless steel.
- Pad: Inner high resilience foam with bonded cover made from waterproof, multi-stretch polyurethane material.
- Fire Retardancy: Crib 5, Ignition source 0 to BS7177
- Cleaning: 1,000 ppm diluted or 0.1% hypochlorite solution (to be used in conjunction with local infection control guidelines).
- Infection Control: All seams are sealed (without stitching) for infection control purposes.
-
Instructions for use
-
-
- Choose the correct round bar accessory clamp for the operating table that the Buttock Support is being attached.
- Slide the accessory clamp onto the accessory rail at the desired position.
- Place the Buttock Support bar into the clamp and tighten.
-
- Adjust the angle of the pad to the required position and tighten the handle.
