Operating Side Rail
TT/411
Specifications
Technical Data
Instructions for use
Specifications

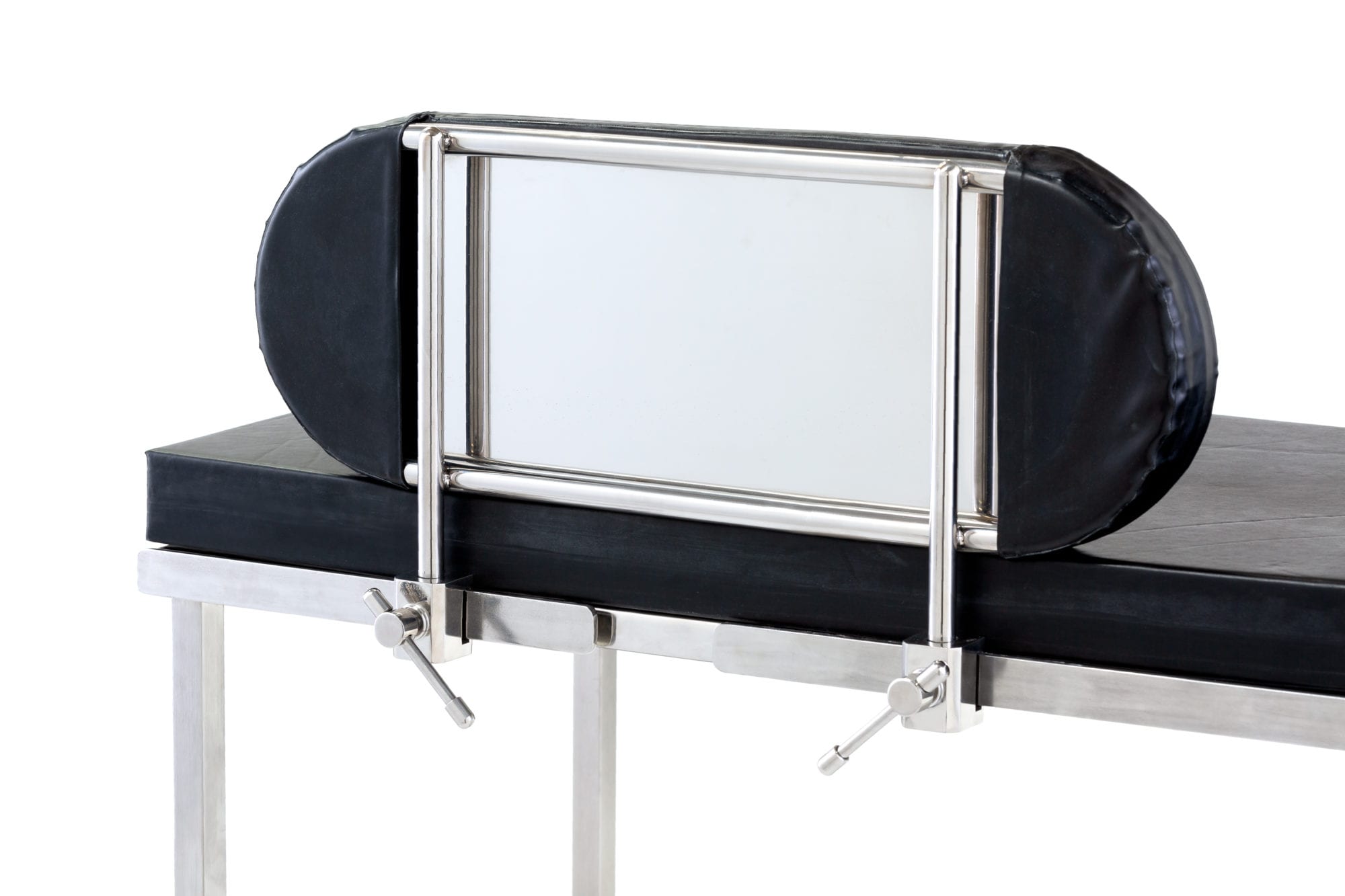

A side rail that attaches to the operating table to ensure the patient is stable if the table is tilted.
TT/411 Complete with Pads
TT/411P Replacement Side Rail Pads
24″(610mm) x 8″(203mm)
Technical Data
- Metalwork: High grade 306 stainless steel.Pad: Inner high resilience foam with bonded cover made from waterproof, multi-stretch polyurethane material.
Fire Retardancy: Crib 5, Ignition source 0 to BS7177
Cleaning: 1,000 ppm diluted or 0.1% hypochlorite solution (to be used in conjunction with local infection control guidelines).
Infection Control: All seams are sealed (without stitching) for infection control purposes.
Instructions for use
- Choose the correct accessory clamp for the operating table that the Side Rail is being attached.Slide the accessory clamp onto the accessory rail at the desired position.
Slot the round bars on the Side Rail into the clamps and tighten.
