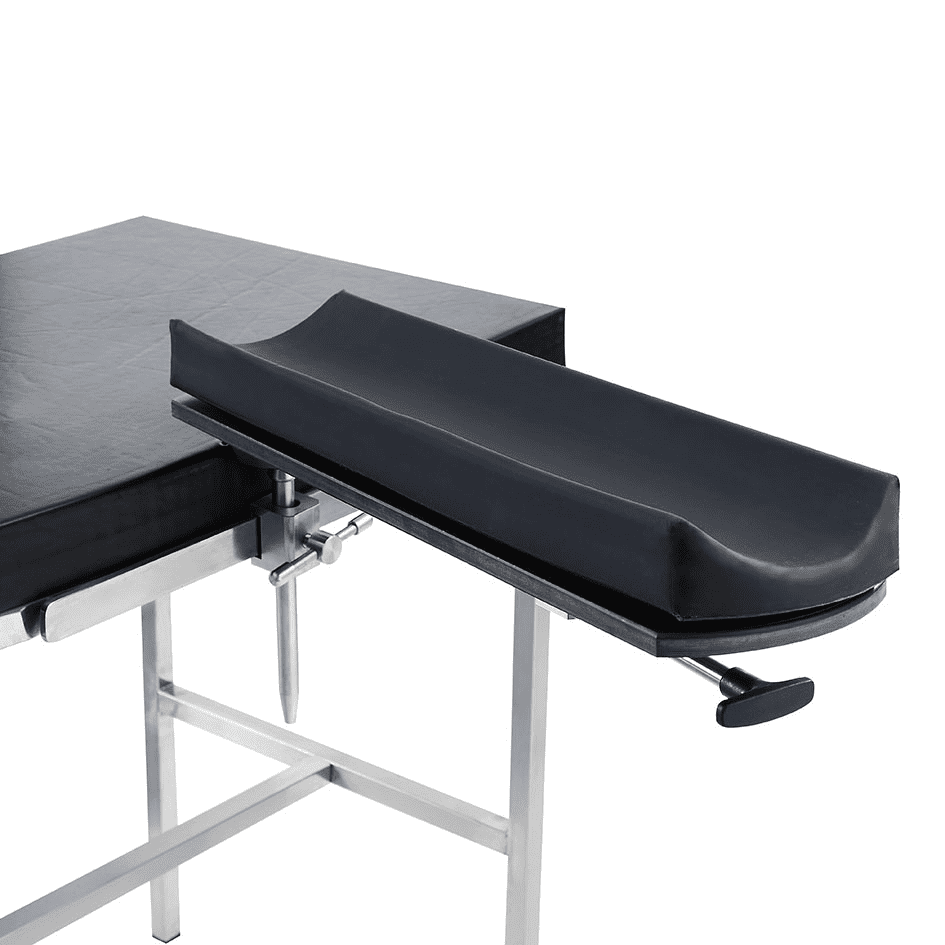

Rotating Arm Table

Product Code: TT/448
  • A widely used arm board that allows for simple, one handed rotation allowing for a wide variety of positions and surgical procedures.

    The products comes with pad and straps that can also be replaced separately and can be used with all operating table models.

    TT/449 Replacement support pads
    TT/449s Replacement straps (pair)

  • Metalwork: medical grade stainless steel

    Board: Tufnell x-ray translucent board

    Pad: High resilient foam covered in wipe clean, durable polyurethane bonded cover for infection control purposes.

    Straps: Polyurethane, wipe clean straps with velcro or clips

    Fire Retardancy: Crib 5, Ignition source 0 to BS7177

    Cleaning: 1,000 ppm diluted or 0.1% hypochlorite solution (to be used in conjunction with local infection control guidelines).

    Infection Control: All seams are sealed (without stitching) for infection control purposes.

    • Choose the correct accessory clamp for the operating table that the Arm Table is being attached.

      Slide the accessory clamp onto the accessory rail at the desired position.

      Slot the round bar on the Arm Table into the clamp and tighten.

    • Using the lever underneath the arm board, lift with one hand and rotate to the desired position with the other hand.

    Place the patient’s arm onto the pad and secure with straps (if preferable, this step can be completed prior to the rotation).
