Lateral Support (Flexible)

• Specifications
• Technical data
• Instructions for use

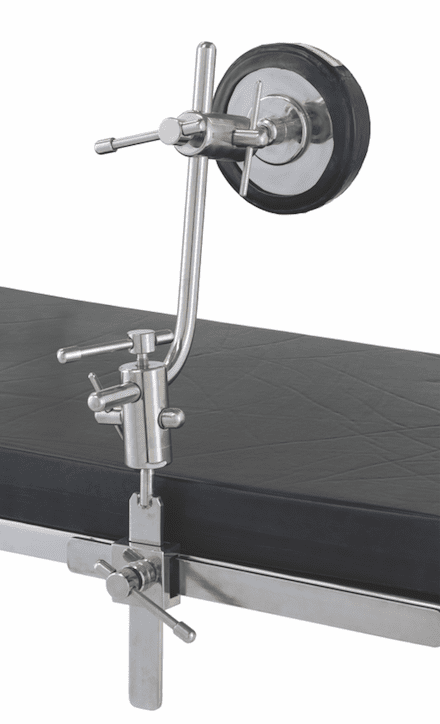

• The Flexible Lateral Support offers a stability and versatility for lateral positioning. the rotating head and adjustable arm makes this product suitable for all patients.

  TT/414 Complete with Pad and Clamp (please state the table model)
  TT/415 Replacement Support Pad 5.5″(140mm) DIA

• Metalwork: High grade 306 stainless steel.

  Pad: Inner high resilience foam with bonded cover made from waterproof, multi-stretch polyurethane material.

  Fire Retardancy: Crib 5, Ignition source 0 to BS7177

  Cleaning: 1,000 ppm diluted or 0.1% hypochlorite solution (to be used in conjunction with local infection control guidelines).

  Infection Control: All seams are sealed (without stitching) for infection control purposes.

• Ensure that the correct flat bar accessory clamp is selected for the operating table and slide the clamp in place.

  Slot the flat bar into the clamp and tighten.

  Adjust the ‘head’ of the support to the desired height and angle and tighten.
