Anaesthetic Screen
TT/407
Specifications
Technical Data
Instructions for use
Specifications

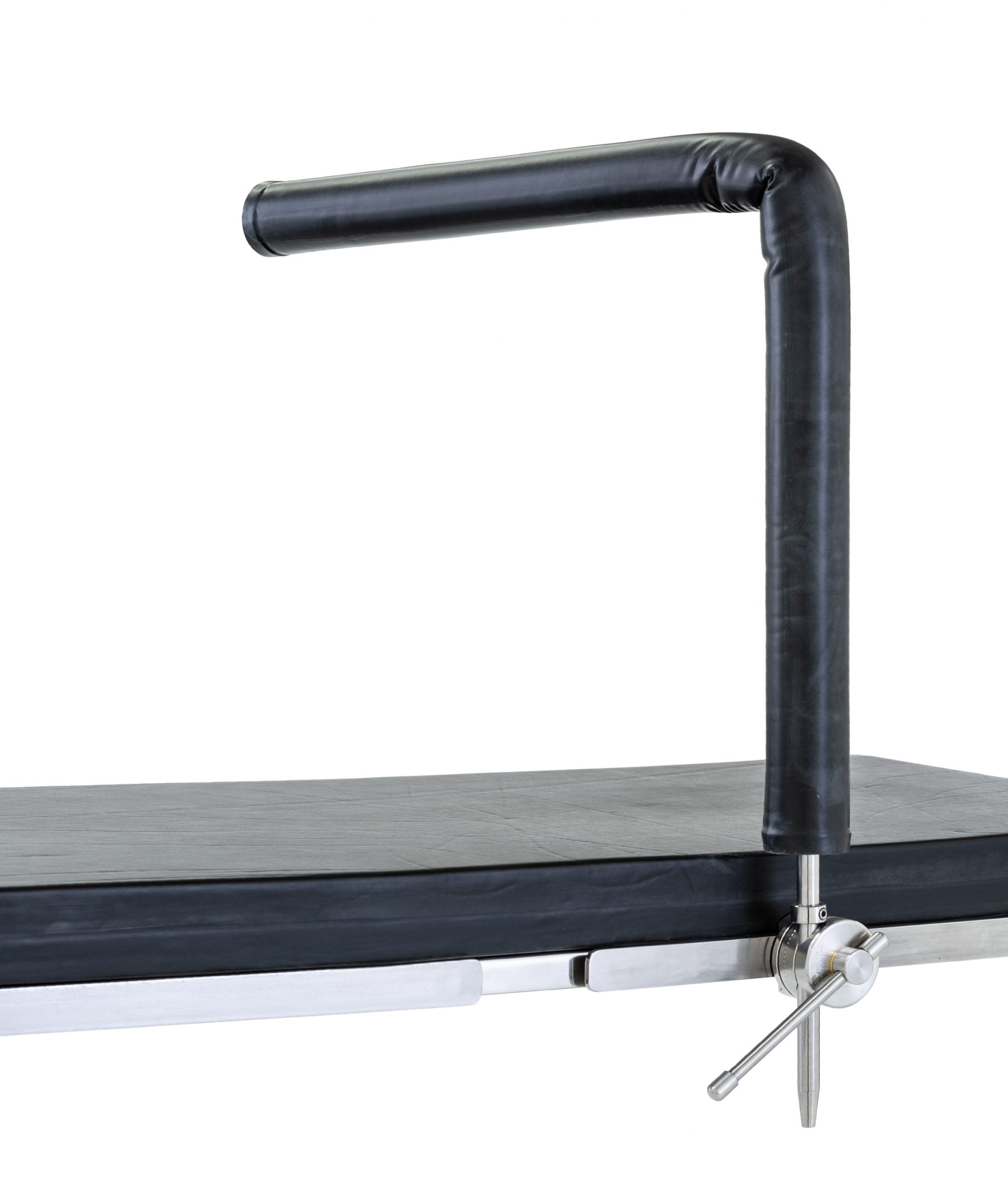

The Anaesthetic Screen is a simple and convenient screen for the operating table.
TT/407 Complete with Pad
TT/111 Replacement Support Pad
Technical Data
Metalwork: High grade 306 stainless steel.
Pad: Inner high resilience foam with bonded cover made from waterproof, multi-stretch polyurethane material.
Fire Retardancy: Crib 5, Ignition source 0 to BS7177
Cleaning: 1,000 ppm diluted or 0.1% hypochlorite solution (to be used in conjunction with local infection control guidelines).
Infection Control: All seams are sealed (without stitching) for infection control purposes.
Instructions for use
Ensure the correct round bar clamp is selected for the operating table, slide the clamp onto the accessory rail.
Slot the anaesthetic screen pole into the clamp and tighten.
