Lateral Support – Tudor Edwards
TT/106
Specifications
Technical Data
Instructions for use
Specifications

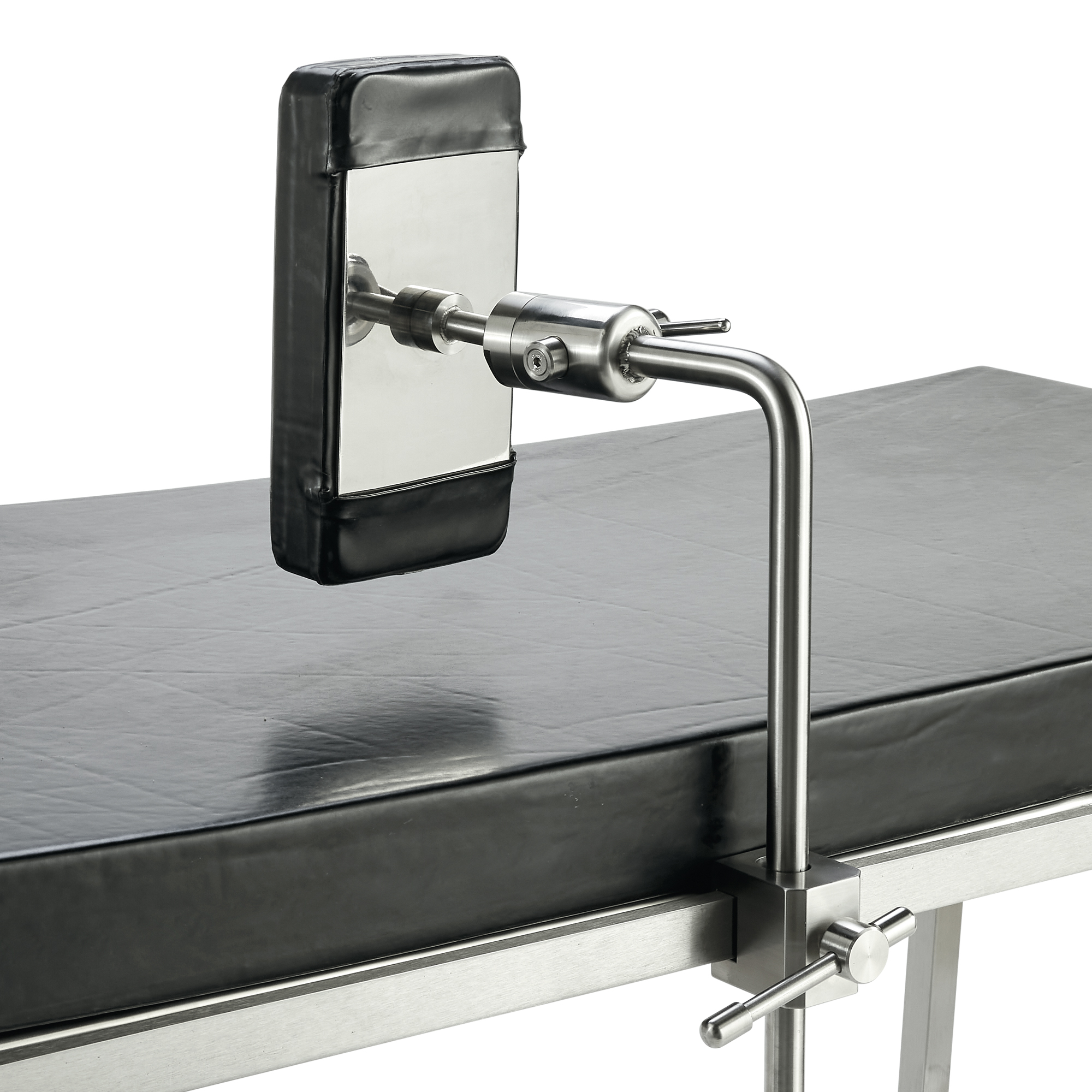

Lateral Support with a flat pad for use with all table models. The support has a swivel head and adjustable bar to accommodate all patients.
TT/106 – Lateral Support with Pad
TT/130 – Replacement lateral Support Pad
Technical Data
-
- Metalwork: High grade 306 stainless steel 16mm round bar.Pad: Inner high resilience foam with bonded cover made from waterproof, multi-stretch polyurethane material.Fire Retardancy: Crib 5, Ignition source 0 to BS7177Cleaning: 1,000 ppm diluted or 0.1% hypochlorite solution (to be used in conjunction with local infection control guidelines).Infection Control: All seams are sealed (without stitching) for infection control purposes.
Instructions for use
-
-
- Choose the correct accessory clamp for the operating table that the Lateral Support parts will be attached.
- Slide the accessory clamp onto the accessory rail at the desired position.
- Slot the round bar on the Lateral Brace into the clamp and tighten.
- Place the patient in a lateral position, adjust the angle of the pad to the desired position and tight the handle
-
